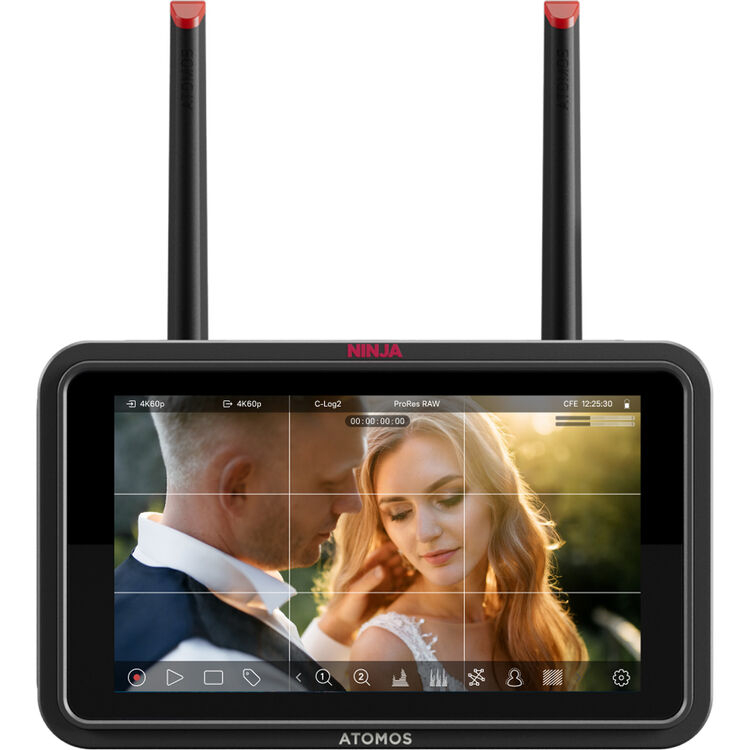

Atomos Ninja TX GO Monitor Recorder

Atomos Ninja TX GO 5.2" HDMI Wi-Fi Camera Monitor/Recorder

The Atomos Ninja TX GO is a compact, HDMI-only on-camera monitor and recorder built as the perfect companion to the Ninja TX. Designed for versatility on any production—from solo creators to professional crews—it combines advanced monitoring, high-resolution recording, and powerful wireless workflows in a lightweight form factor.

Featuring a bright 5.2" touchscreen display, HDMI 2.0 input/output, and support for up to 6K30 ProRes RAW recording, the Ninja TX GO delivers exceptional image quality and performance. Built-in AtomX Connect technology adds Wi-Fi connectivity for TX/RX streaming, cloud uploads, and seamless NDI integration, while all major codecs (ProRes RAW, DNx, H.265) are included with no additional licenses required.

Bright, Color-Accurate Monitoring

The 5.2" IPS touchscreen offers 1920 × 1080 resolution with a 1500 cd/m² brightness, ensuring excellent visibility even in direct sunlight. Support for 8-/10-bit color processing, HDR, Rec. 709, and Calibrite ColorChecker Display Pro/Plus calibration delivers precise, reliable color for confident monitoring on set.

Updated AtomOS Linux

Redesigned for the TX and TX GO lineup, the AtomOS Linux operating system delivers a sleeker interface, enhanced tools, and cooler, more efficient operation.

Built-In Wireless & NDI Support

With AtomX Connect technology built in, the Ninja TX GO offers expanded wireless workflows. The included NDI/HX3 license allows the monitor to function as either an NDI source or receiver, enabling high-quality, low-bandwidth video sharing across compatible networked devices.

Camera-to-Cloud (C2C) Workflow

The Ninja TX GO supports direct Camera-to-Cloud uploads, allowing footage to be sent straight from the monitor to ATOMOSphere, Adobe Frame.io, or Dropbox. Everything needed for C2C is built in—no additional modules required—helping teams move faster from capture to post.

Advanced Color, LUT, and Metadata Support

Compatible with log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon, the Ninja TX GO supports custom 3D LUT uploads and HDR conversions to Log, HLG, PQ, or Dolby Vision. It also records essential metadata, including white balance, ISO, shutter, iris, gamma, and gamut.

HDMI I/O

- HDMI input: Up to 6K30, 4K60, and 1080p120
- HDMI loop-through output for external monitors, wireless transmitters, or live encoders

High-Speed Recording & USB-C Expansion

Record to CFexpress Type B or via dual USB-C ports, leveraging PCIe and NVMe speeds for fast, future-proof workflows. USB-C also supports calibration, LUT uploads, audio accessories, firmware updates, and more.
With AtomOS 12.2.1 and later, the Ninja TX GO supports ProRes RAW recording from the Canon EOS R6 Mark III, up to 6960 × 3672p30 or 4320 × 2278p60.

Flexible Power Options

Power the Ninja TX GO using NP-F L-series batteries, USB-C 30W PD, or an optional battery eliminator for continuous DC power.

Professional Monitoring Tools

A full suite of one-touch monitoring tools includes focus peaking, zoom, zebras, false color (ARRI & EL Zone), waveform, RGB parade, vectorscope, frame guides, anamorphic de-squeeze, and flexible 1D/3D LUT support.

Intuitive Control

Use the responsive touchscreen alongside multifunction control buttons for fast operation. The Ninja TX GO supports auto HDMI camera trigger for select Canon and Sony cameras, LANC control, and expanded camera control via firmware updates.
