Atomos Shinobi 7 RX Monitor

Atomos Shinobi 7 RX — Overview

Upgrade your production workflow with the Atomos Shinobi 7 RX, a bright, 7" HDR on-camera monitor and wireless receiver designed for focus pullers, directors, and camera assistants. With high-brightness viewing, Wi-Fi 6E wireless monitoring, and built-in camera control, it delivers a powerful all-in-one monitoring solution for both wired and wireless environments.

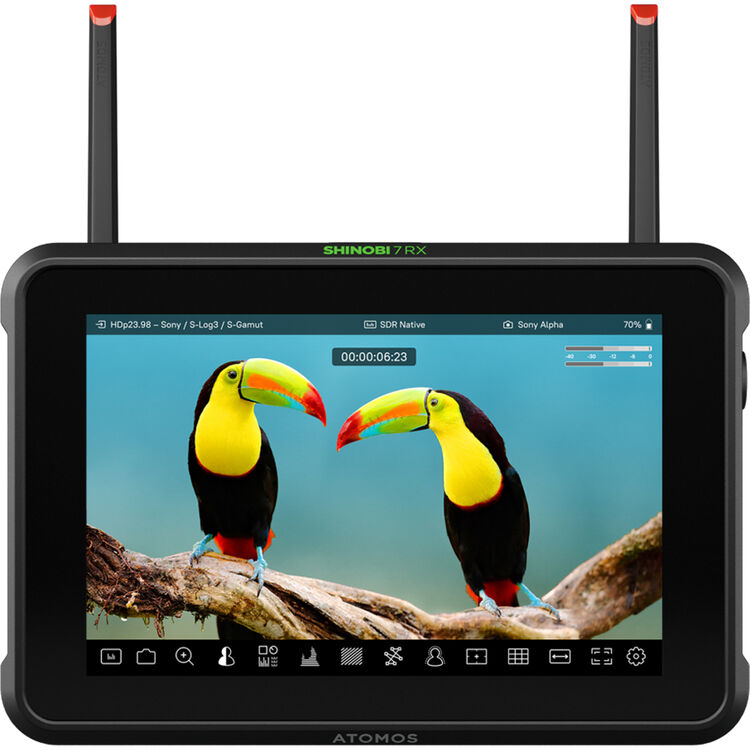

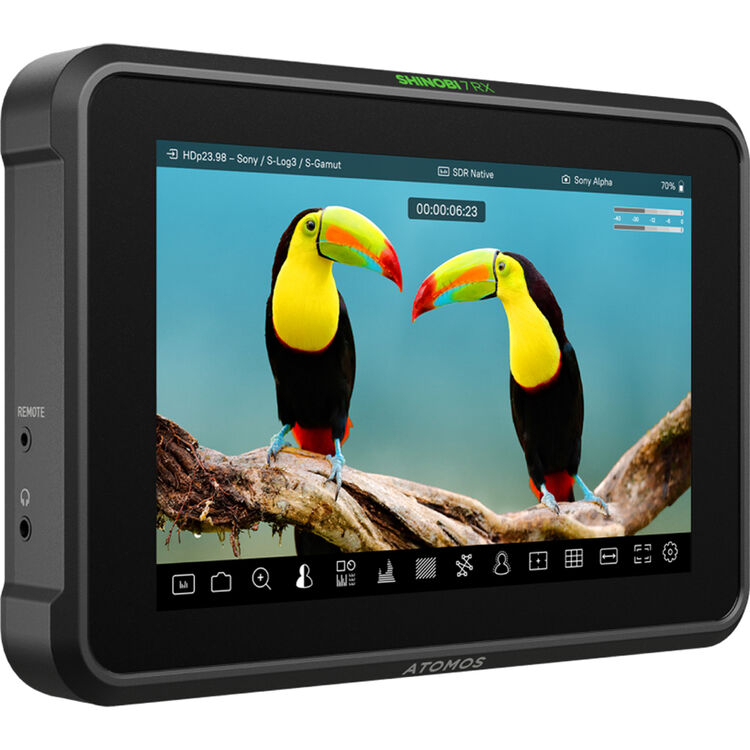

Daylight-Bright 7" Display

The Shinobi 7 RX features a 1920 x 1080 IPS touchscreen with an impressive 2200 cd/m² brightness, allowing clear viewing outdoors without a sun hood. Each panel comes factory-calibrated for accurate color representation right out of the box.

Wi-Fi 6E Wireless Monitoring

Built-in Wi-Fi lets you pair the Shinobi 7 RX with an Atomos TX unit or view RTSP H.264 streams with ultra-low latency—under 60 ms from up to 984 ft away. This gives directors and crew full mobility on set without losing sight of the shot.

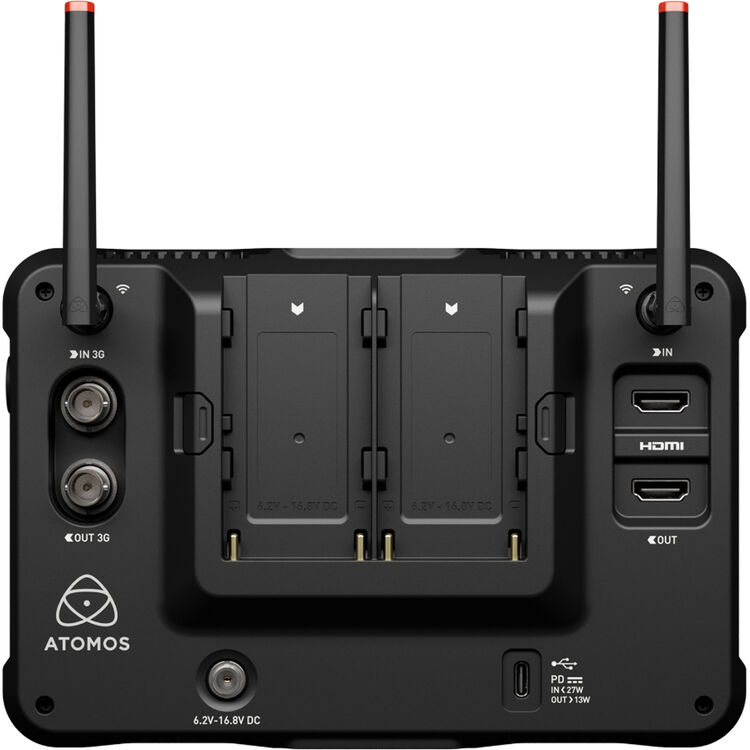

HDMI & SDI Connectivity

- Monitor DCI/UHD 4K up to 60 fps over HDMI 2.0

- Monitor 1080p up to 60 fps via 3G-SDI

- HDMI and SDI loop outputs

- Full HDMI/SDI cross-conversion for flexible rigs

Touch-to-Focus Control

When paired with compatible cameras, simply tap the screen to shift focus instantly. The touchscreen can also leverage camera-specific autofocus modes like subject tracking for smooth, intuitive focus control.

Flexible Power Options & USB-C Control

Dual NP-F battery slots offer long run times, with support for dummy batteries and USB-C PD power from adapters or power banks. The USB-C port also delivers camera control for supported systems and works with external calibration tools—no computer needed.

Extensive Log & HDR Support

The Shinobi 7 RX supports a wide range of Log profiles and HDR color gamuts from major camera brands, including Sony, Canon, Panasonic, ARRI, RED, FUJIFILM, Nikon, and more. Profiles include:

- S-Log, C-Log, V-Log, F-Log, N-Log

- Pro HDR options like PQ and HLG

- Wide-gamut color spaces such as BT.2020, DCI-P3, ALEXA Wide Gamut, and REDWideGamut

Audio Monitoring

Monitor embedded audio via HDMI/SDI, plug in external audio using the 3.5mm line input, or monitor privately through the headphone output.

Professional Monitoring Tools

Running the latest AtomOS firmware, the Shinobi 7 RX includes essential monitoring and analysis tools:

- Waveform, vectorscope, histogram, RGB parade

- Focus peaking and exposure tools

- Framing guides, zebras, and multi-scope views

- Custom 3D LUT loading via SD card for both input and output

Integrated Camera Control

The monitor offers direct camera control for Canon, Sony (via USB-C), FUJIFILM, Nikon, Panasonic, and Z CAM (via optional cable). Adjust aperture, ISO, shutter settings, white balance, overlays, record triggers, and more—all from the touchscreen.

Precision Calibration

Compatible with Calibrite Display Pro HL/Plus HL probes via the Atomos Calibrator app, the Shinobi 7 RX ensures consistent color accuracy for both HDR and Rec. 709 monitoring.
