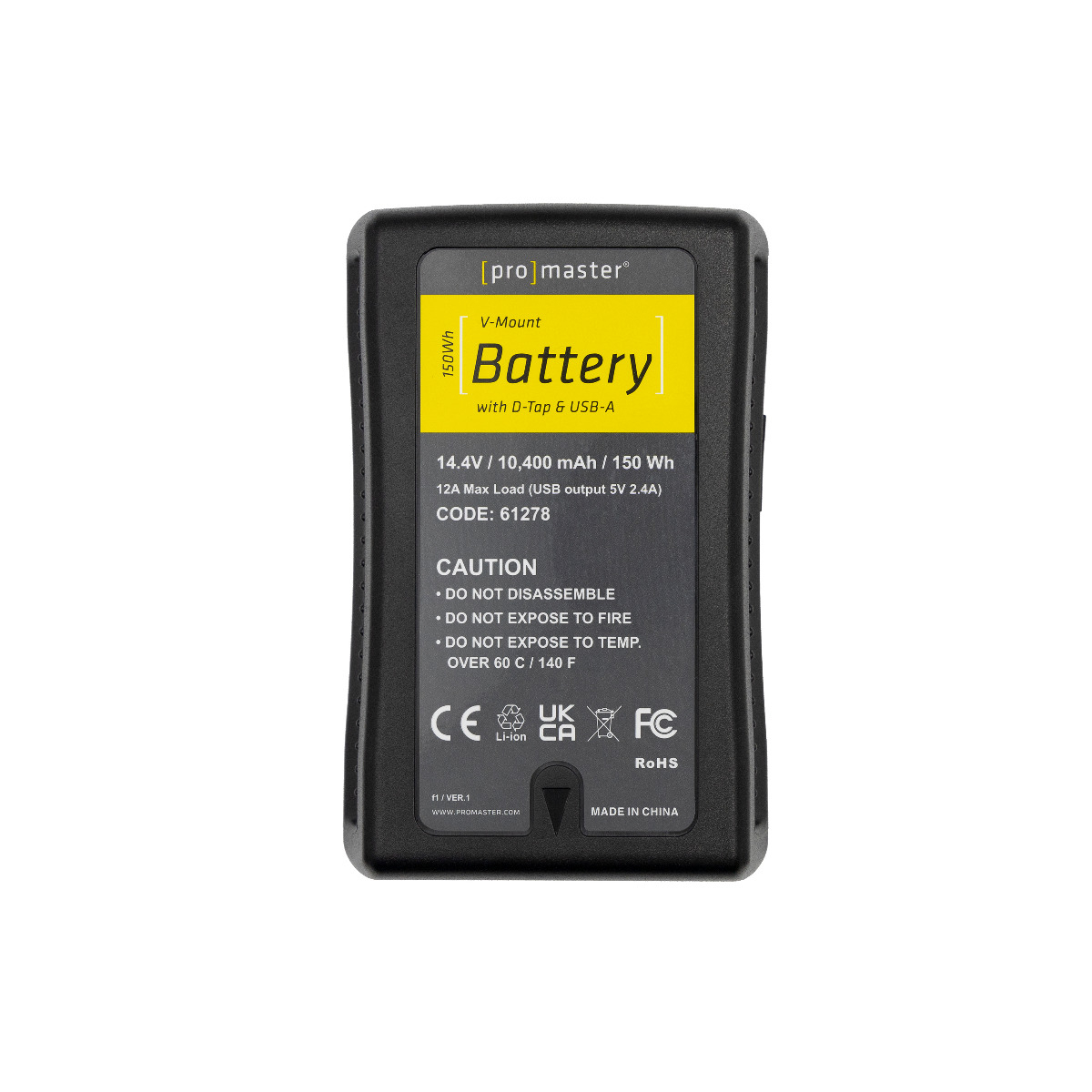

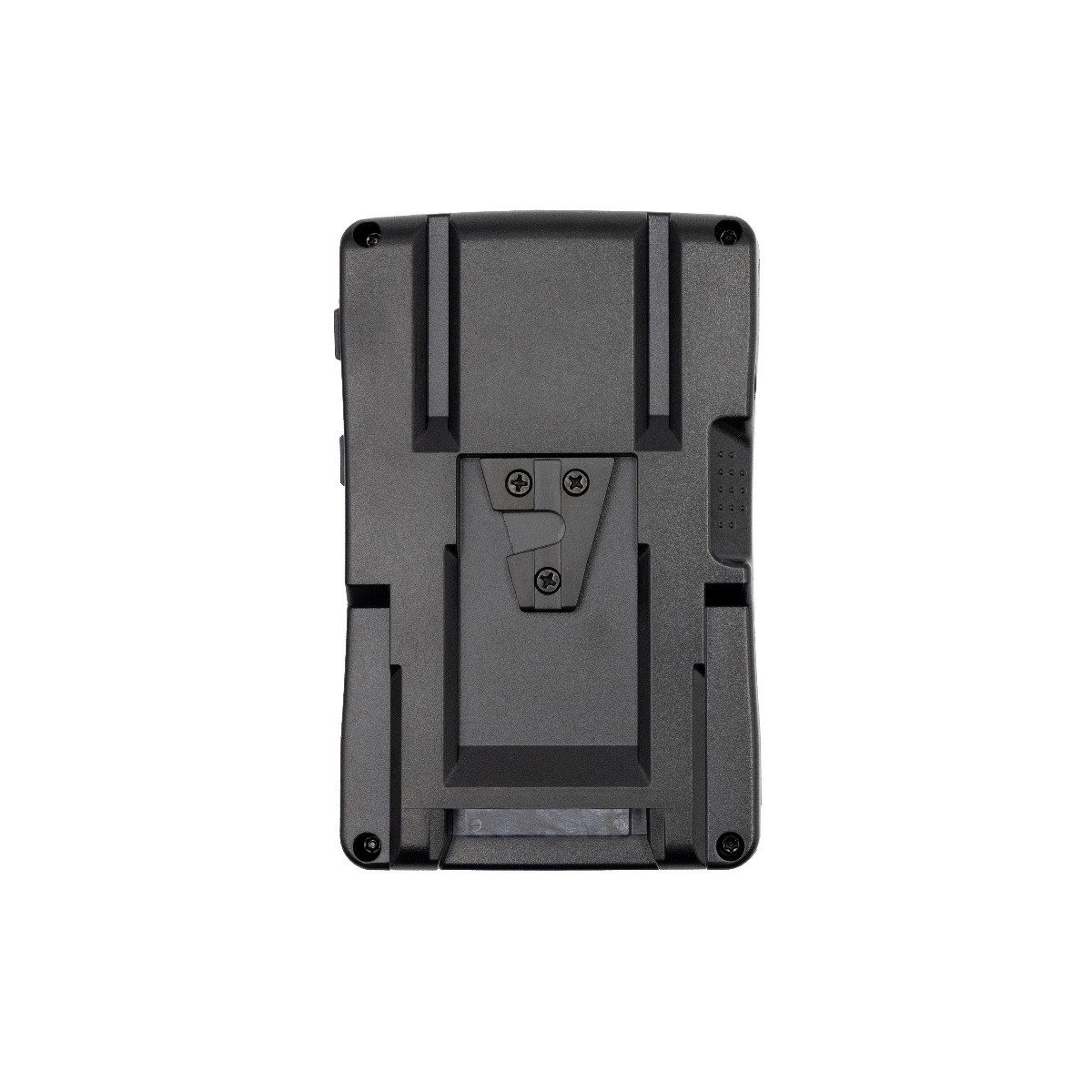

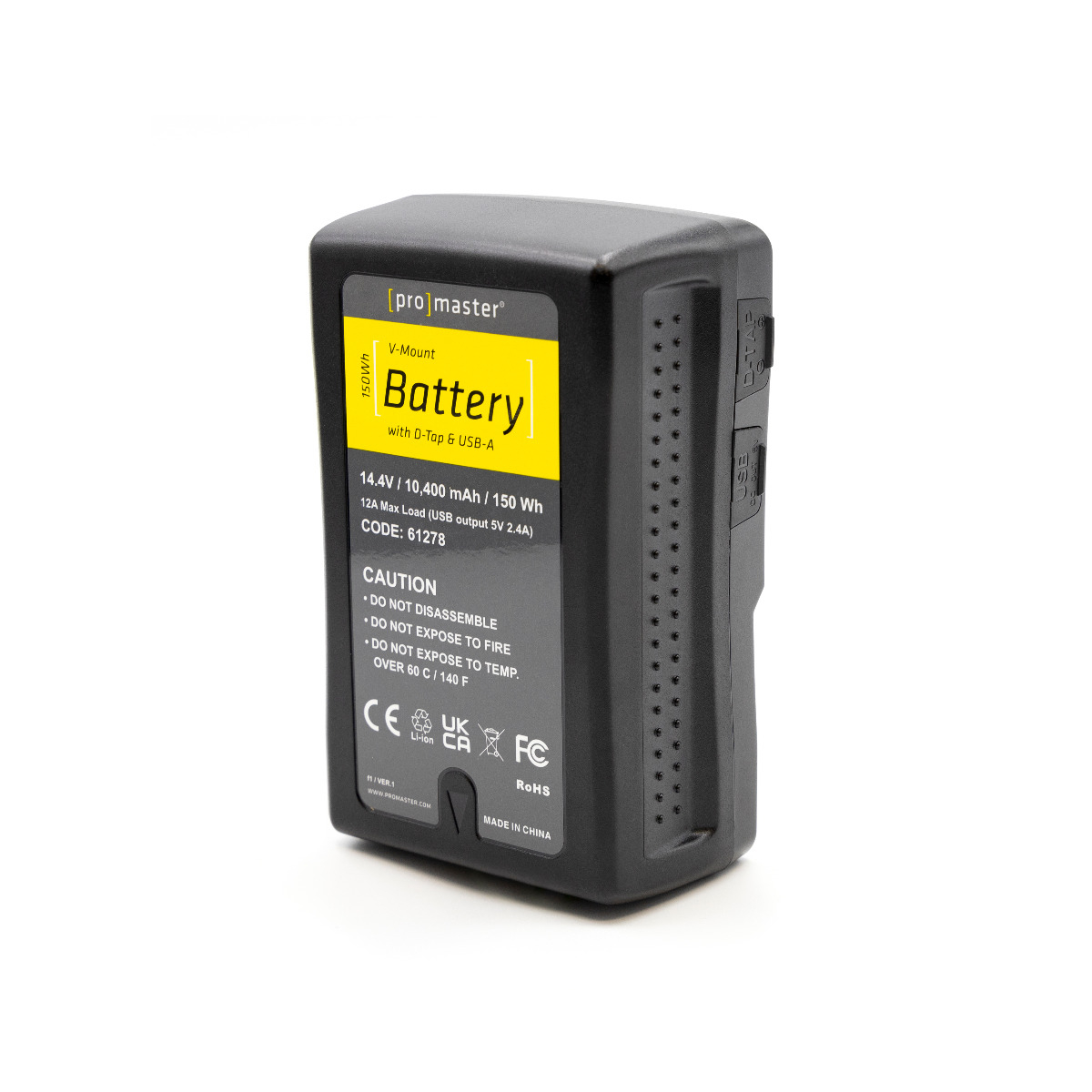

ProMaster Compact V-Mount Battery Kit 150Wh w/ D-Tap & USB-A

The ProMaster 61278 V-Mount Battery Kit is a high capacity (14.4V / 10,400 mAh / 150 Wh) li-ion battery with D-Tap and USB-A ports. It supports a continuous draw up to 12A at a nominal 14.4 V. This kit includes a D-Tap charger for convenience and value.

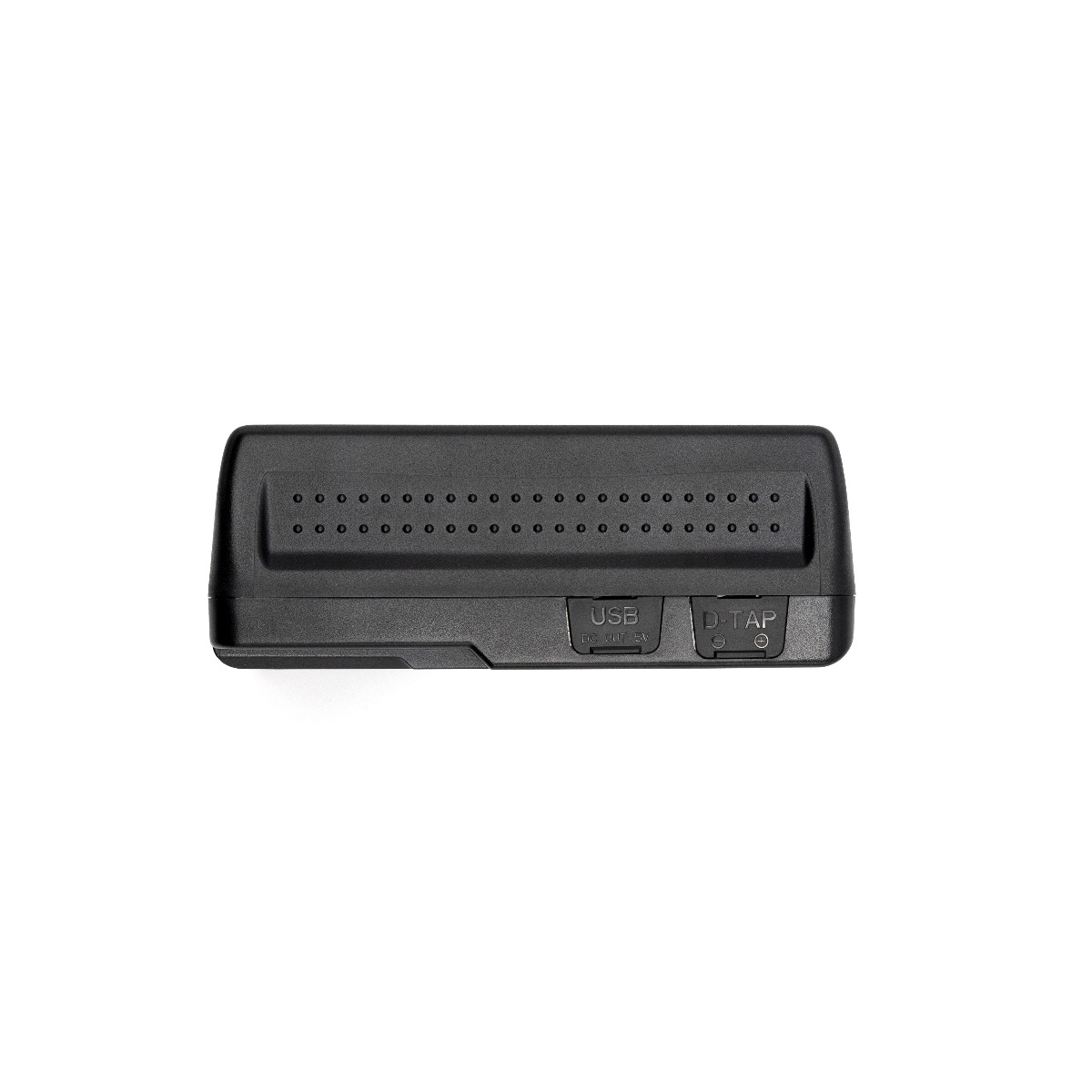

The battery sports an industry standard D-Tap port which can be used for charging the battery, as well as for powering other devices using a compatible D-Tap cable. In addition to the D-Tap port, this battery has a USB-A (5V 2.4A) output port for charging or powering compatible devices.

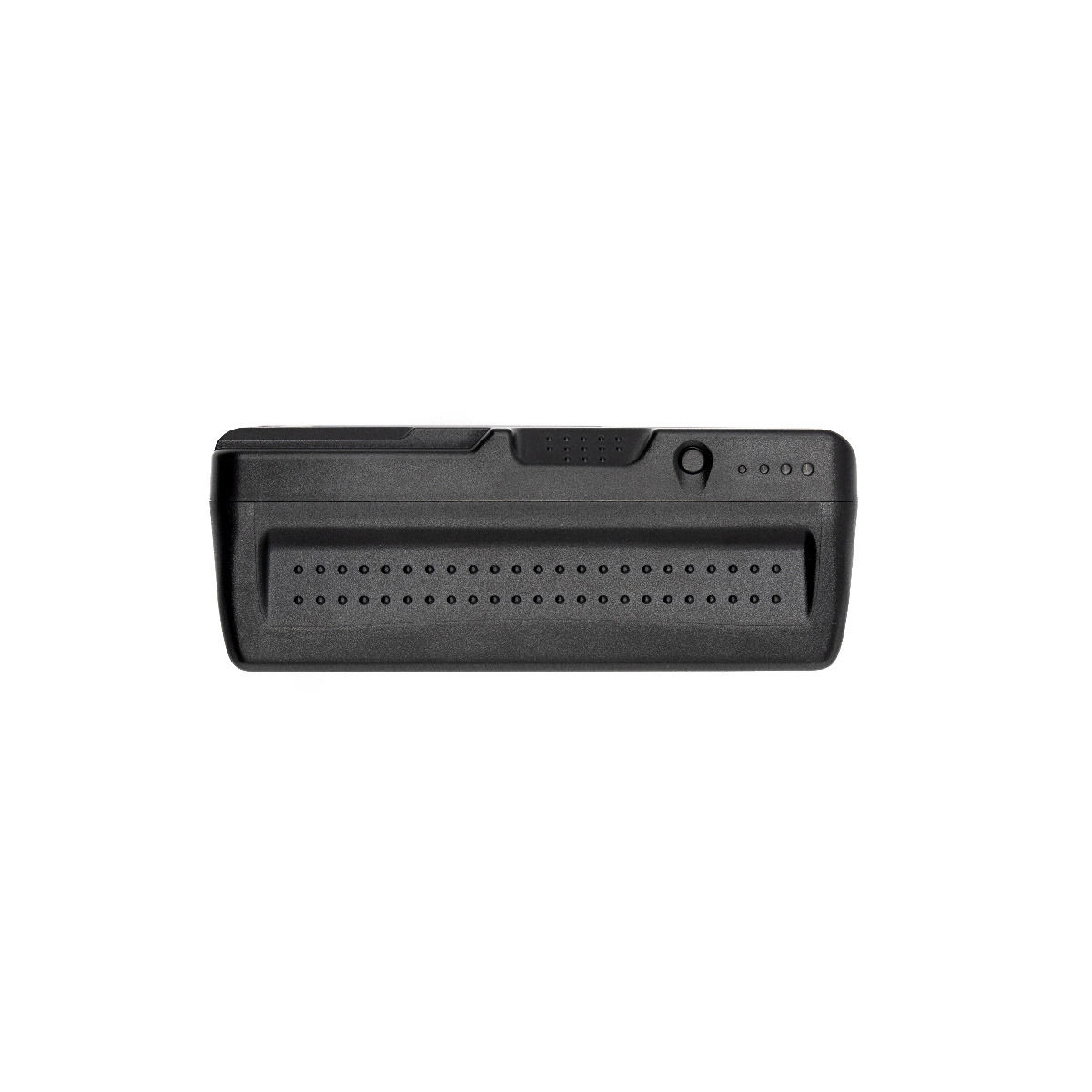

An on-board 4-LED power gauge displays the approximate, remaining battery capacity. It is easily activated with the push of a button.

Over-charge, over-discharge, over-current, and over-temperature protection circuitry is built-into this battery for safety.

Charging this battery using the included D-Tap charger from depleted to 100% takes about 7 1/2 hours.

Standout Features:

• 10,400 mAh / 150 Wh capacity
• Supports up to 12A of continuous draw
• Onboard 4-LED power gauge indicate remaining battery capacity
• 2-Pin D-Tap port for charging and power
• USB-A port for charging other devices
• Kit includes D-Tap charger
• Built-in protection circuitry

Battery Specifications:

Nominal Voltage: 14.4 V
Capacity: 10,400 mAh / 150 Wh
Maximum Load: 12 A continuous draw (via main contacts or D-Tap)
Cut-off Discharge Voltage: 11.0 V
Charging Voltage: 16.8 V
Charging Current: 3.12 A standard charging / 4.0 A quick charging
Maximum Charging Current: 6 A
USB-A Port Output: 5 V / 2.4 A
USB Cut-off Discharge Current Protection: 2.5 - 3.2 A
D-Tap Maximum Discharge Current: 14.9 A (16.8 V) - 22.7 A (11 V)
D-Tap Charging Voltage: 16.8 V
D-Tap Maximum Charging Current: 6 A
Dimensions: 5 7/8" x 3 3/4" x 2 1/4" | 150 mm x 95 mm x 57 mm
Weight: 2 lbs 4 3/4 oz / 1,042 g

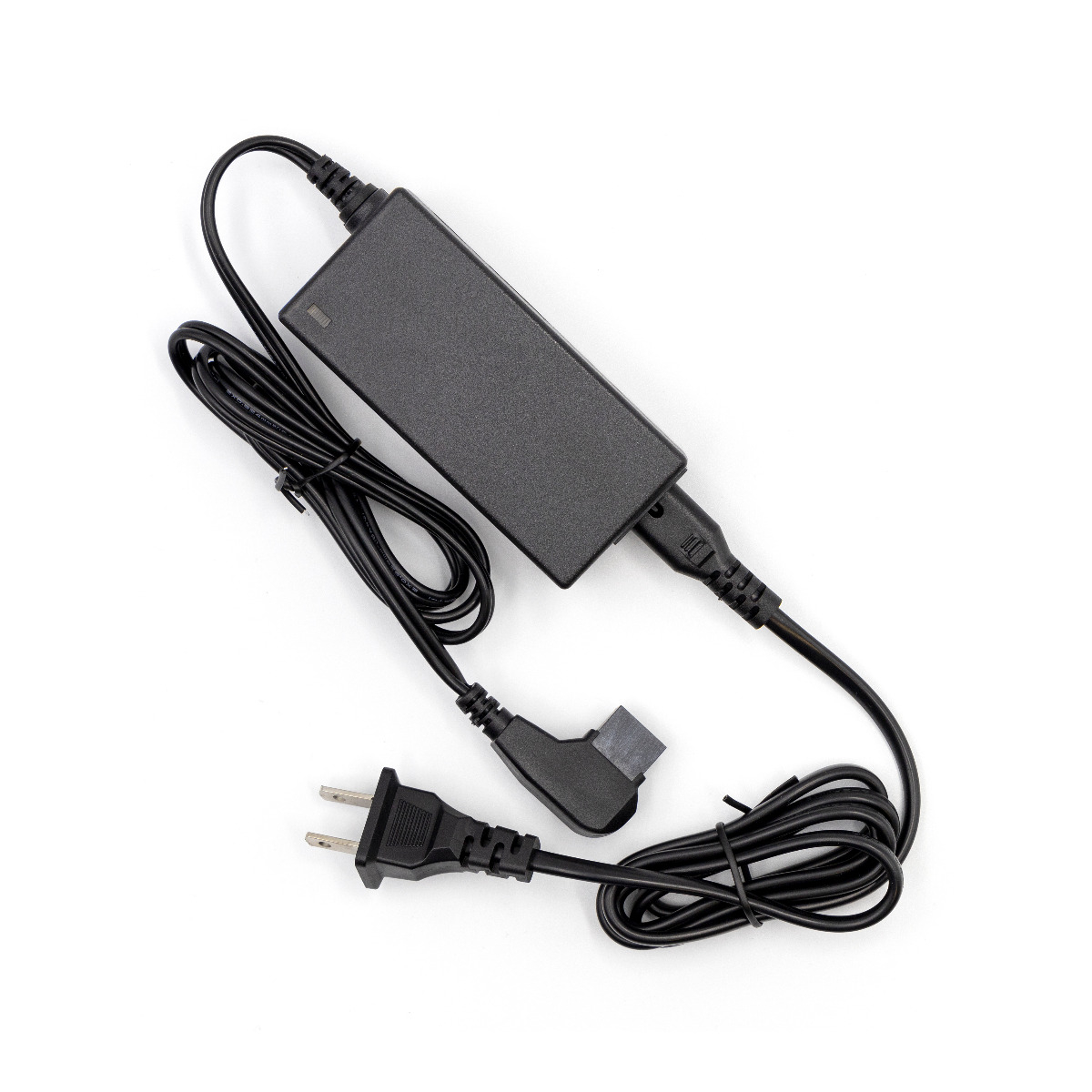

Charger Specifications:

Input: 100 - 240 V AC 50/60 Hz
Output charging voltage: 16.8 V DC
Output charging current: 2.0 A
