SONY HXRIFR5 Camcorder Interface Module

Be the first to review this product

Product code:

SON3156

In stock

$2,200.00

Specifications

Clearance

Connects FS700 to AXS-R5 RAW Recorder
Enables 4K/2K RAW Workflow with AXS-R5
Allows 100/120fps 4K Recording w/ AXS-R5
16-Bit Linear RAW to AXS Cards w/ AXS-R5

FREE SHIPPING

Any order over $50 *some restrictions apply
CALL OR EMAIL

For Support
EASY RETURNS

Hassle-free process
SHOP IN OUR SHOP

Visit our store

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Move your mouse over image or click to enlarge

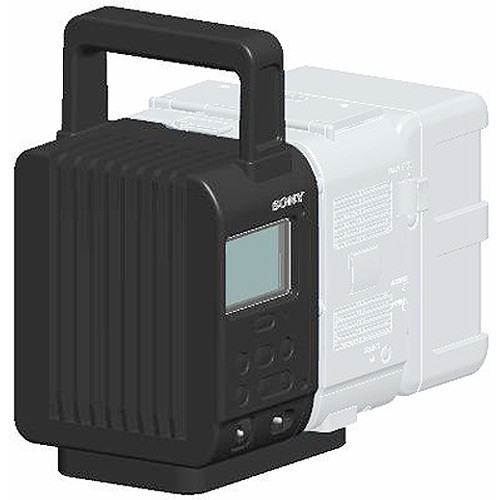

The Sony HXR-IFR5 Interface Unit interconnects the Sony FS700 camera to the AXS-R5 RAW recorder. It enables the camera's 2K and 4K RAW files to take advantage of the RAW workflow of Sony PMW-F55 and F5 CineAlta cameras. The RAW files created by the FS700 (FS700RAW files) are sent to the HXR-IFR5 interface unit which docks to the AXS-R5 RAW recorder. After recording, the FS700RAW files can be screened and converted using the free RAW viewer software from Sony.

Docks to the AXS-R5 Access Memory System recorder
Receives the uncompressed bitstream carrying RAW sensor data, metadata, timecode, and start stop commands from the NEX-FS700U/K Camera via 3G-SDI
Controls 4K/2K RAW recording and playback
Coordinates simultaneous recording for seamless on-line/off-line capture; you can simultaneously record 4K on the AXS-R5 while recording HD on the FS700 camera, both with identical; start frame, stop frame, and time code
Built-in LCD panel displays status indication including record mode, frame rate, timecode, and battery & media remaining time
Large, tactile control buttons for basic operation, menu, and media management provide a simple user interface for configuring and controlling the AXS-R5 recorder
When attached to the HXR-IFR5 interface unit, the AXS-R5 RAW recorder can act as a stand-alone playback unit for confidence monitoring and review through the on-board HD SDI 422 output. This system supports recordings made by the FS700 camera and the PMW-F5/55 digital cameras
Automatically salvages card data in case of abrupt power interruption
Uses a comprehensive file naming convention including cameras ID, reel number, shot number, date, and a two-character, user-generated ID
