SmallRig Baseplate for BMDPCC 4K&6K Arca Compatible SR_DBC2261

Product code:

SRG2261

Backorder

$99.00

Specifications

1. A dedicated baseplate designed for BMPCC 4K & 6K.
2. Arca compatible QR plate and receiver on the top and secured by a knob screw.
3. 15mm rail support at 85mm rod height.
4. Arri standard dovetail on the bottom.
5. 1/4"-20 and 3/8"-16 threaded holes on the bottom for attachment of other plates.

FREE SHIPPING

Any order over $50 *some restrictions apply
CALL OR EMAIL

For Support
EASY RETURNS

Hassle-free process
SHOP IN OUR SHOP

Visit our store

Skip to the end of the images gallery

Skip to the beginning of the images gallery

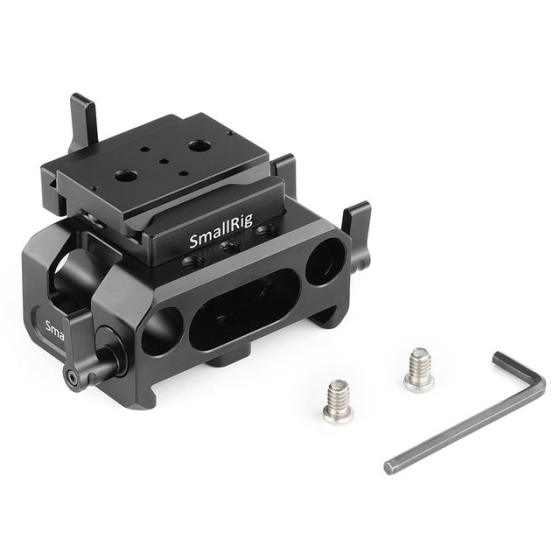

SmallRig Baseplate for BMDPCC 4K&6K Arca Compatible SR_DBC2261

Move your mouse over image or click to enlarge

SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K & 6K (Arca Compatible) DBC2261 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It is designed to work with SmallRig Cage 2203 and CVB2254. On the top are Arca compatible QR plate and receiver, where the cage can be quickly mounted. On the middle is 15mm rail clamp for SmallRig 15mm Rods 1053, where accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be attached. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.

NOTE:
If you prefer Manfrotto compatible quick release on the top, please take a look at SmallRig Baseplate DBM2266.

Designer: Yetta White

Compatibility:
Blackmagic Design Pocket Cinema Camera 4K & 6K
SmallRig cage 2203
SmallRig cage CVB2254

Package Includes:
1 x Baseplate
1 x Hex Spanner
2 x 1/4 Screw

Product Dimensions: 108 x 66 x 51.5mm
Package Dimensions: 125 x 108 x 90mm
Net Weight: 307g
Package Weight: 373g
Material(s): Aluminum Alloy
