SARAMONIC Blink 800 B1 TX-35 & RX35 5.8GHz Wireless Lav System

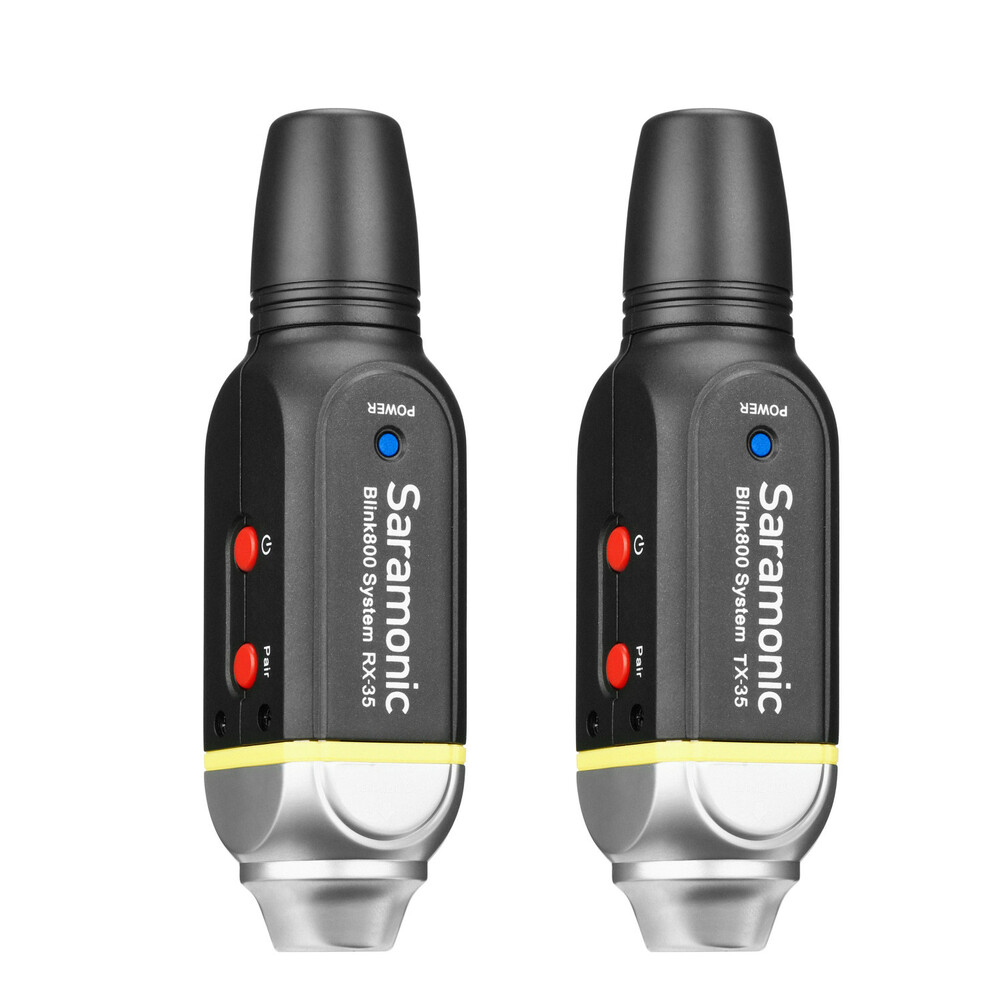

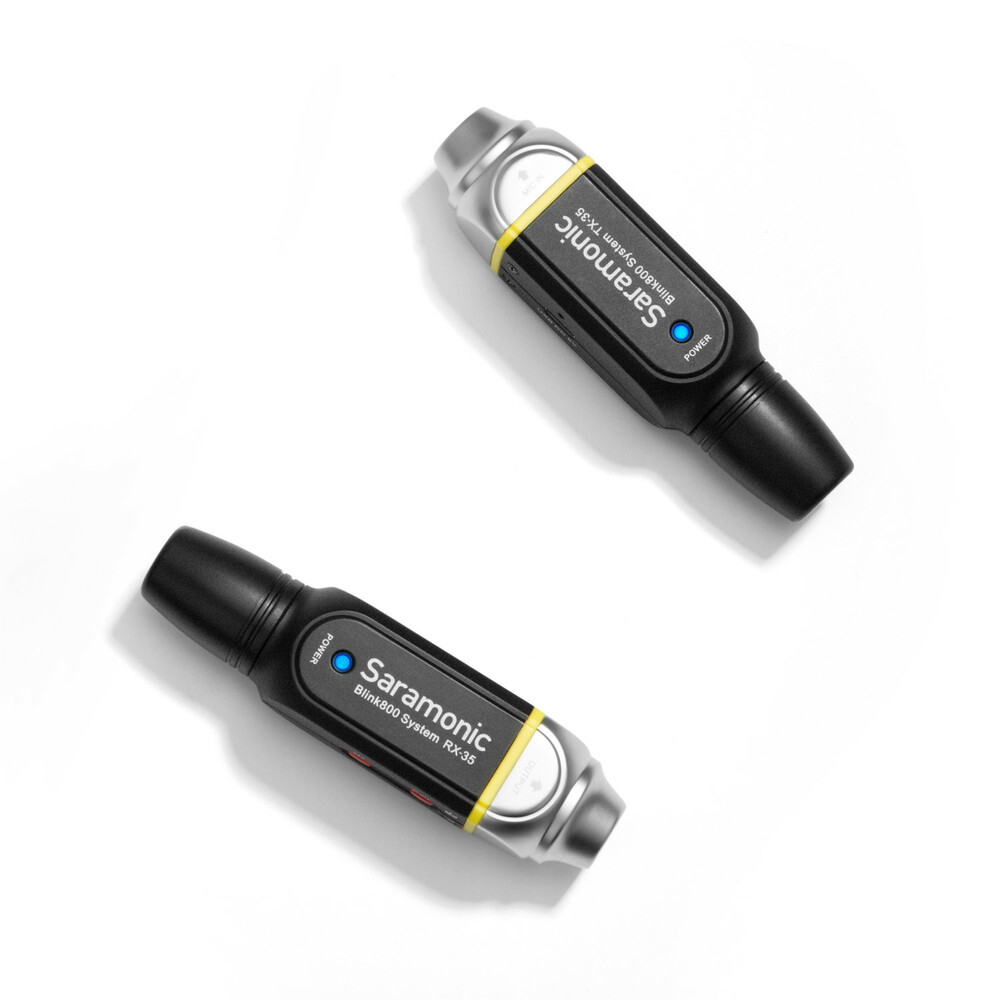

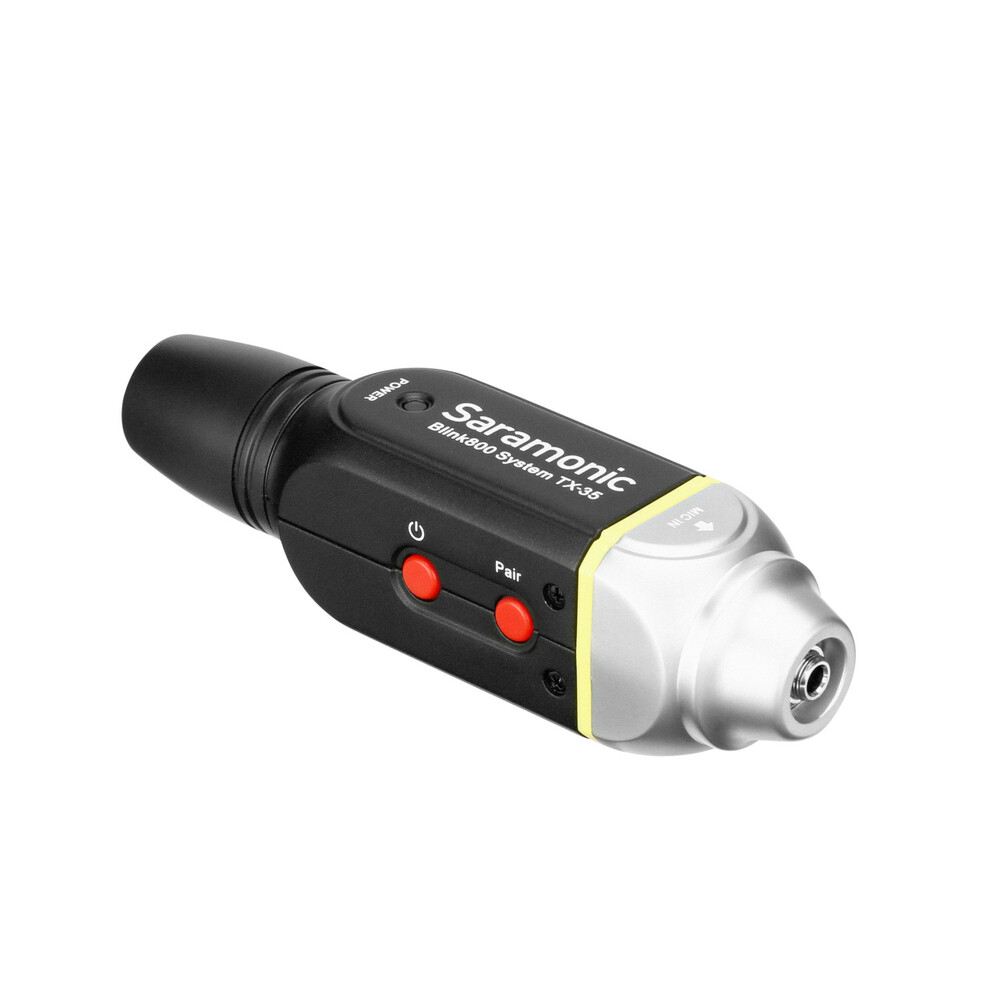

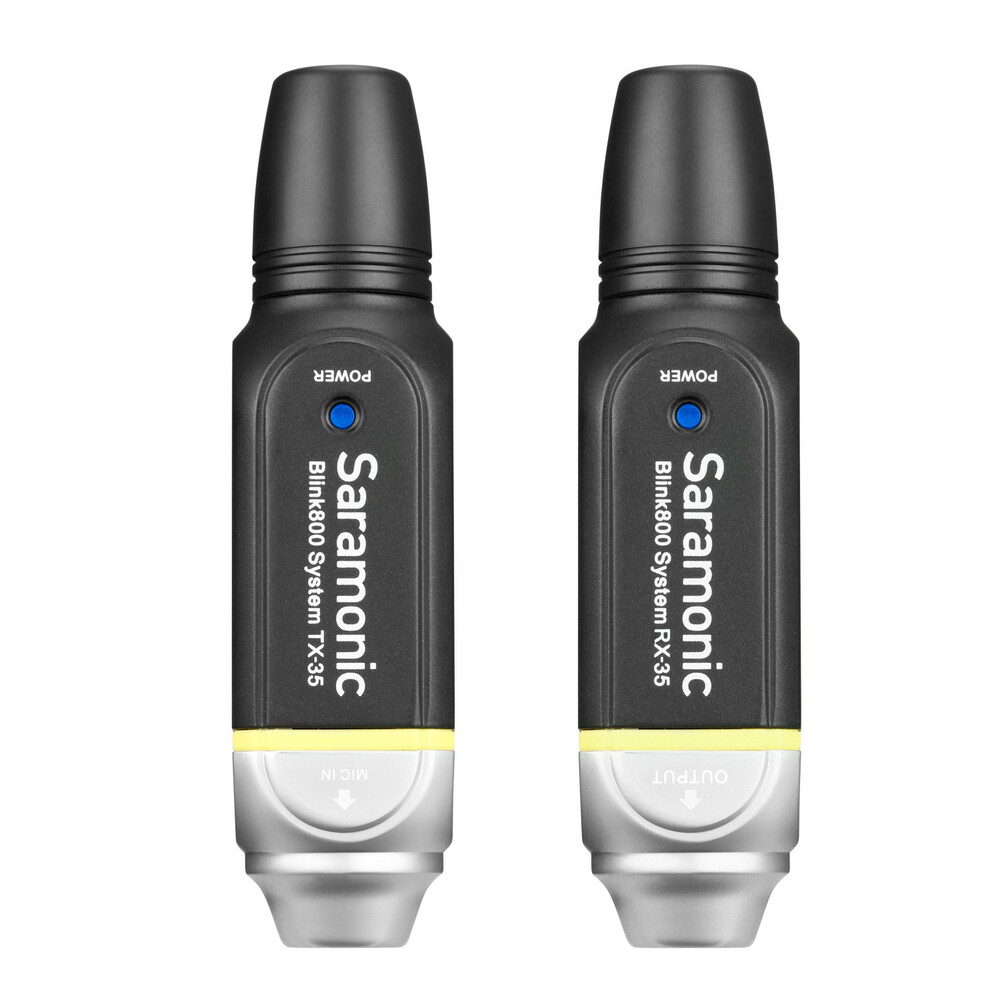

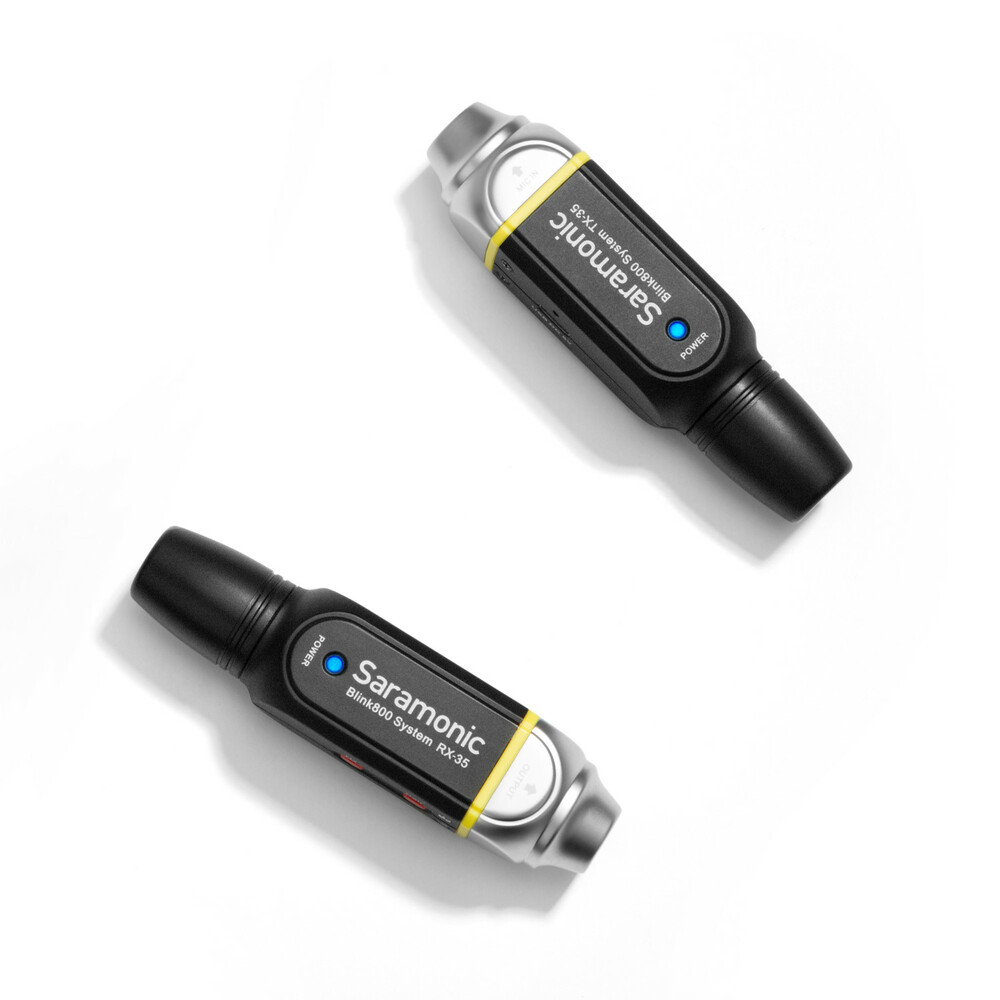

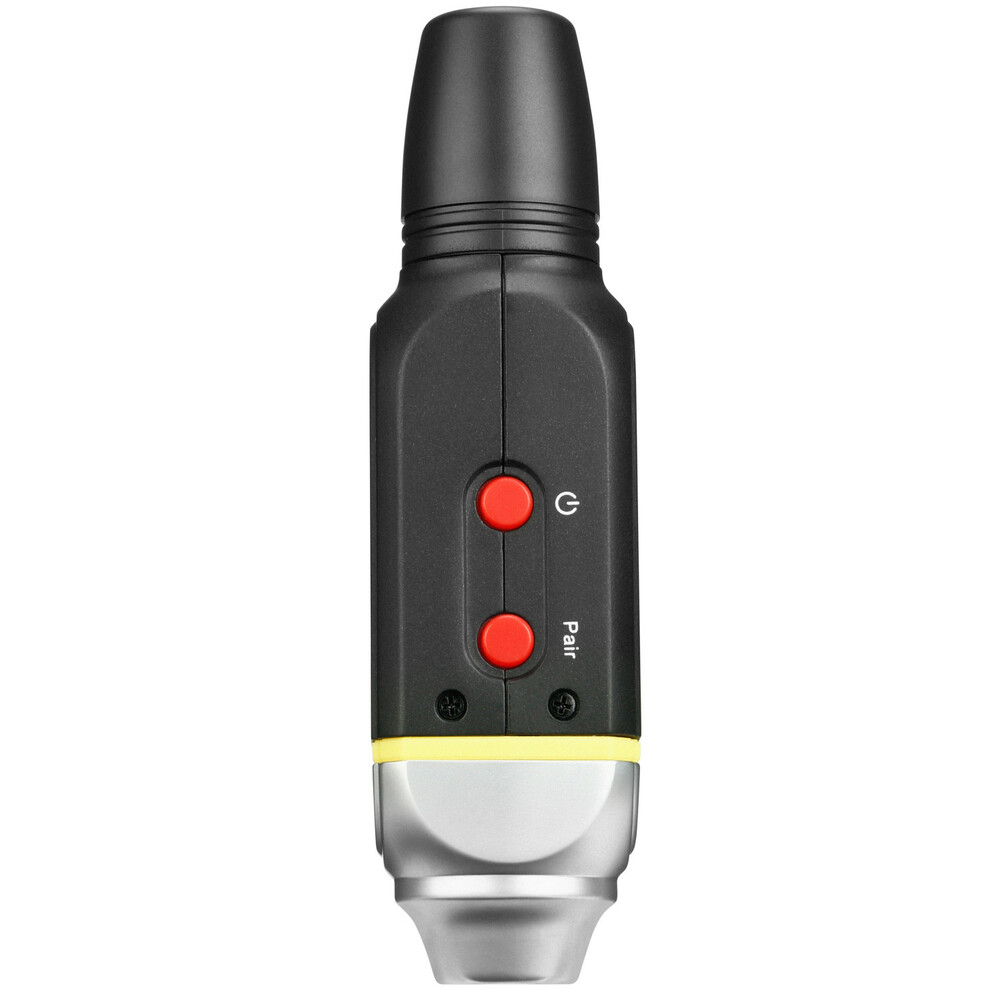

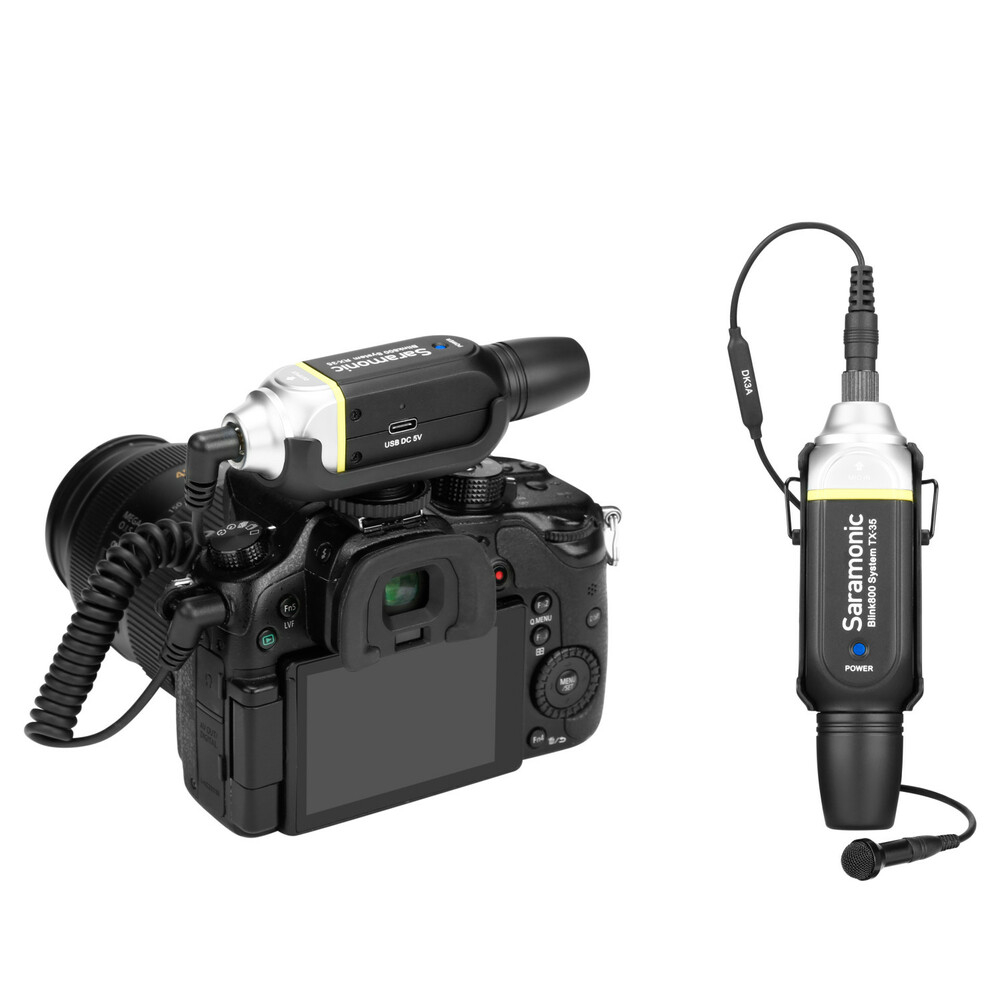

The Saramonic Blink 800 B1 is an incredibly compact and simple to use 5.8GHz Wireless Lavalier System that is designed for cameras, recorders and mixers. The system features the unique TX-35 belt pack transmitter and RX-35 camera-mountable receiver, together they provide an easy-to-use and reliable wireless system for any user that sounds great every time. The system also includes the Saramonic DK3A 4mm premium lavalier microphone, which delivers detailed, high-quality professional sound. With no settings or controls to set, it allows you to just turn the system on, and start recording.

Just Turn It On, for Great Wireless Sound
Because there are no settings or menus to have to worry about, the Blink 800 Pro B1 might just be the most simple, professional wireless system on the market. Pre-paired out of the box and there’s nothing to do besides connect the Lavalier to the TX-35 transmitter and connect the RX-35 receiver to your camera or recording device, turn them on and starting shooting. All of the complicated aspects of using wireless microphones happen seamlessly in the background, letting you concentrate on storytelling and getting a great shot. Together with included premium DK3A omnidirectional lavalier the Blink 800 B1 system delivers a crisp, full-frequency response and increased vocal intelligibility to your film productions and recordings.

A Powerfully Advanced 5.8GHz System
The Blink 800 B1 operates in the 5.8GHz frequency range, which is much higher and much less congested than 2.4GHz, UHF, and VHF. It automatically and intelligently changes channels to avoid static noise and audio dropouts and features a strong 10mW of wireless output power, providing an impressive range of up-to 196.8-feet (60m) in open spaces. With up-to 6-hours of runtime from integrated lithium-ion batteries, so you won’t be wasting money on disposable batteries. The transmitter and receiver can be charged with included USB to USB-C cables and even can be powered while in use or recharged in the field with portable USB battery packs.

Versatile Connectivity and Expansion Options
The Blink 800 B1 comes with a 3.5mm TRS output cable for cameras, recorders, mixers and more with 3.5mm mic input. You can also easily pair it with Saramonic’s numerous optional output cables, or adapters to use with pro cameras or mixers with XLR, smartphones, computers, tablets and much more as well (sold separately). Pair it with a SR-UM10-C35XLR or C-XLR for professional cameras, recorder or mixers with XLR. Add a SR-C2000 for Lightning devices, a SR-C2001 for USB-C devices, a SR-PMC2 for TRRS devices, or USB-CP30 for computers with USB. The flexibility and the options for the Blink 800 B1 don’t stop with just 3.5mm.

Wireless System:

• Wireless Transmission: Digital 5.8GHz
• Modulation: GFSK
• Antenna: PIFA Antenna
• Frequency Response: 20Hz to 20kHz
• Operating Range: Up-To 196.85’ (60m) Line-of-Sight
• RF Output Power: 10mW
• Audio Output Level: -60dBV
• Signal-to-Noise Ratio: ≥72dB
• Audio Latency: ≤4ms
• Connectors (TX-35 & RX-35): Gold-Plated Locking 3.5mm Connectors

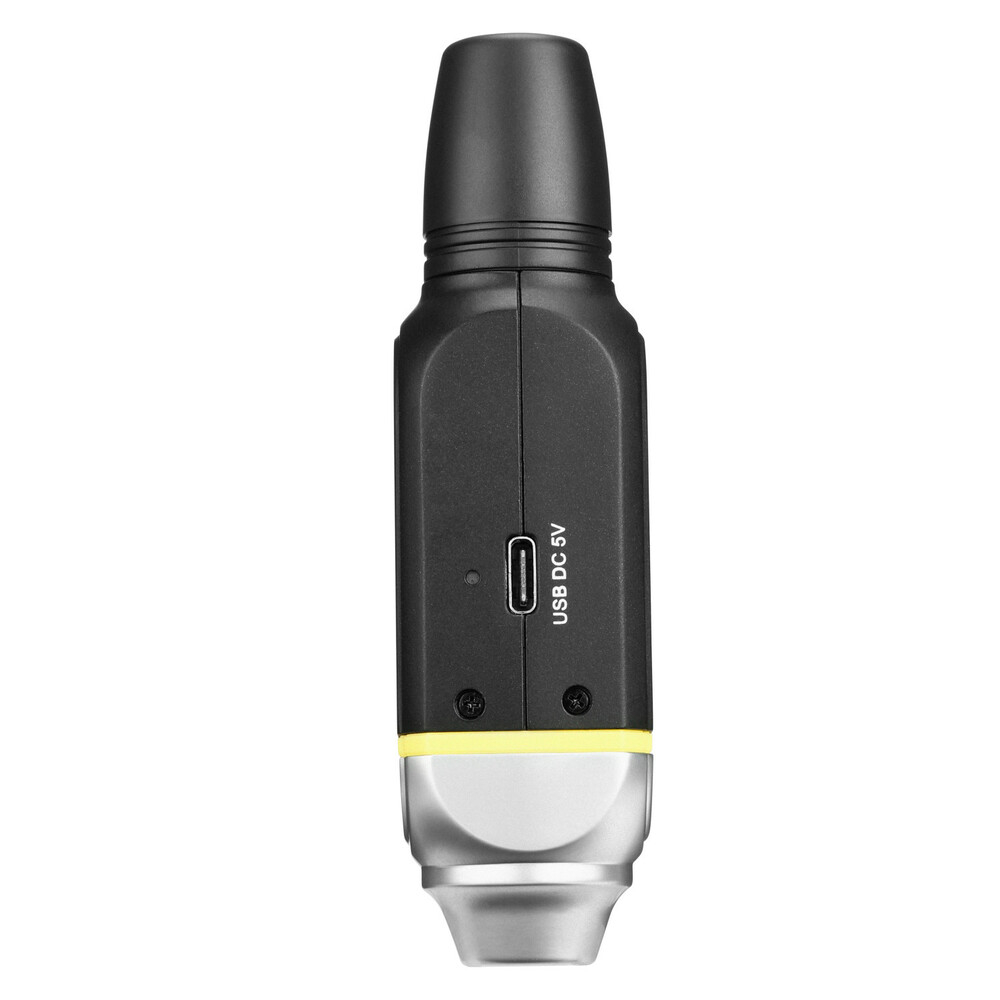

• Power Requirements: Built-In Lithium Battery or USB-C DC 5V
• Built-In Lithium Battery Life: Approximately 6-Hours
• Dimensions (TX-35 & RX-35): 4.49 x 1.1 x 1.16” (114.32 x 28 x 29.56mm) each
• Weight (TX-35 & RX-35): 3.03oz (95g) each
• Operating Temperatures: 0° to 122°F (0°C to 50°C)
• Storage Temperatures: -4° to 131°F (–20°C to +55°C)

DK3A Lavalier:

• Acoustic Principle: Electret Condenser
• Polar Pattern: Omnidirectional
• Sensitivity: -40±2dB (1kHz 0dB=1V/Pa)
• Maximum SPL: 110dB
• Frequency Range: 20Hz to 18kHz
• Signal-to-Noise Ratio: More than 58dB
• Operating Temperature: -20°C - 60°C
• Connector: Gold-Plated Locking 3.5mm
• Cable Length: 70.87” (180cm)

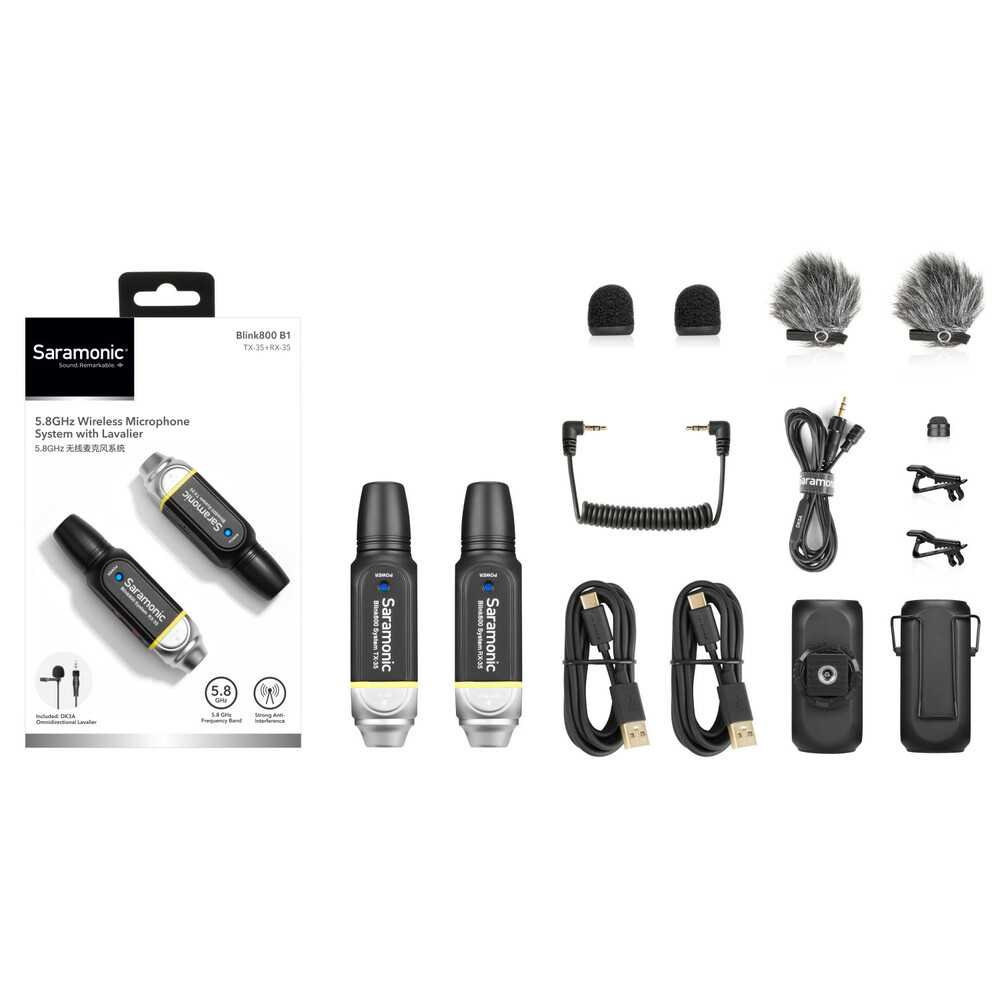

ITEM INCLUDES

1 x TX-35 Wireless Belt Pack Transmitter with Gold-Plated Locking 3.5mm Connector
1 x RX-35 Wireless Camera Mountable Receiver with Gold-Plated Locking 3.5mm Connector

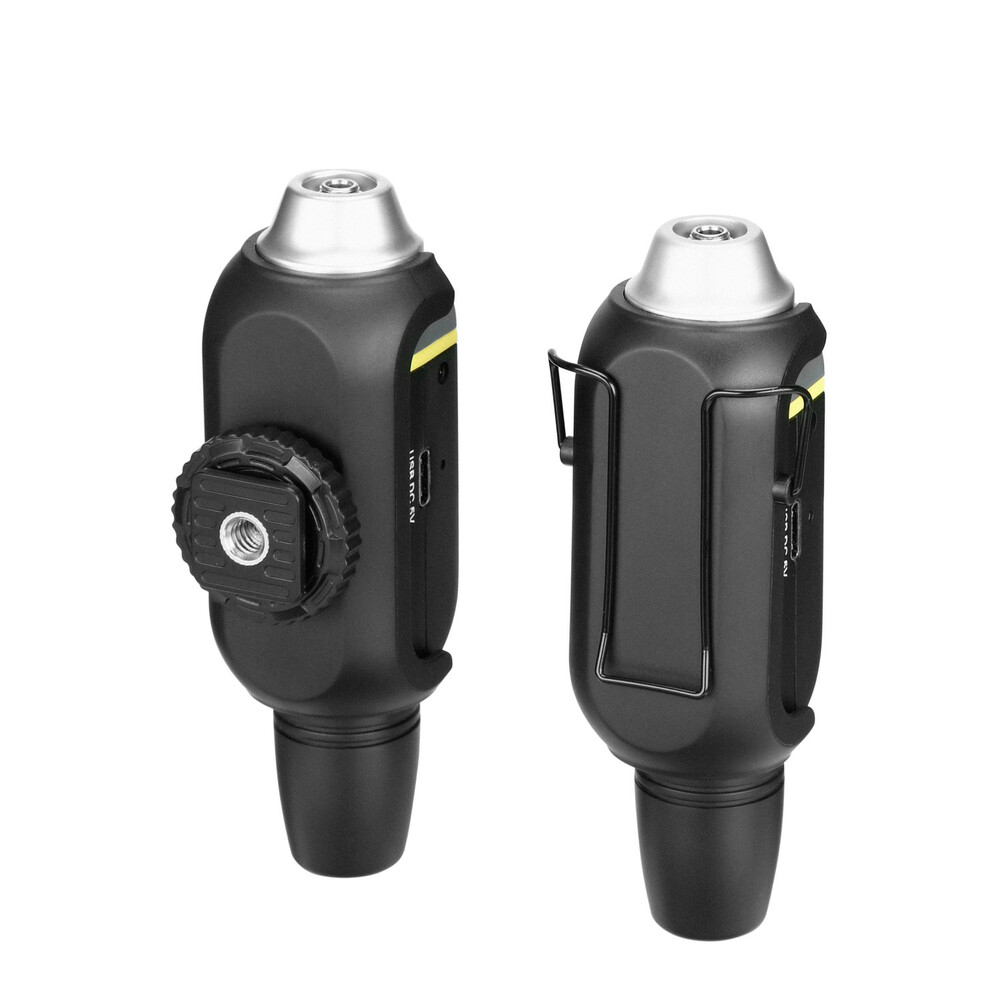

1 x Detachable Belt Clip Adapter for TX-35
1 x Detachable Cold-Shoe Adapter for RX-35
1 x DK3A Premium 4mm Omnidirectional Lavalier
1 x Alligator-Style Mic Clip
1 x Fitted Metal Microphone Windscreen
2 x Foam Windscreens with Fitted Gaskets
2 x High-Wind Furry Windscreens with Elastic Fastening Clasps
1 x Reusable Cable Wrap
2 x 1’ (30.5cm) 3.5mm TRS to 3.5mm TRS Output Cable
2 x 1’ (30.5cm) USB-A to USB-C Charging Cables
1 x Sheet of 36 Multi-Color Identification Stickers
1 x Printed Quick Start Guide
1 x Printed Manual
1 x Warranty Card
